GX60NX 2/GX60NX 2 HP
New 65cm Inmarsat GX Fleet Xpress Terminal
Intellian GX60NX 2 is a 2.5GHz Ka- Wideband ready Global Xpress terminal with a 65cm diameter reflector. The GX60NX 2 is designed with a compact lightweight antenna enabling easy and convenient installation. The GX60NX 2 has a transceiver system and GX60NX features a BUC. The GX60NX 2 HP incorporates an upgraded 9W high-powered transceiver.
The All-In-One GX BDT integrates the GX Modem and GX Mediator, making it simple and easy to install in an FX rack. The GX60NX 2’s new operation platform ensures quick configuration and activation with its smart operational software AptusNX.

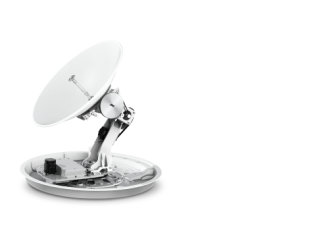

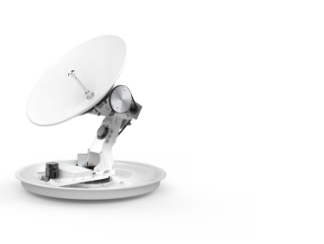

* Image used is GX60NX 2
- GX60NX 2/GX60NX 2 HP
- Key Features
- Compare Products
- Downloads
- Related Products
- Where to Buy
Compact and lightweight
Even though the weight is reduced dramatically, the terminal performance is not compromised.
High power upgradable
No need to replace the BDT and no additional components, high power BUC or transceiver can be easily installed.
Future proof design
Ready for operation on 2.5GHz Ka-wideband with a frequency tuned radome & reflector.
New All in One integrated below deck terminal
The all-new GX BDT integrates ACU, GX modem, power supply, 4-port switch and GX Mediator.
Quick and easy deployment
- No internal shipping brackets
- Pre-slung lifting strap included as standard
- Easy mounting on the vessel
- Single coax cable design with external cable connection
- Quick and easy commissioning using AptusNX Install Wizard
Compact high performance solution
- Rackmount 1U Single BDT including ACU, Modem, Mediator
- High power BUC or transceiver option in same form factor
- Lightweight and high RF performance
Category
GX60NX
GX60NX 2
GX60NX
GX60NX 2
Radome Dimension (HxD)
93x86 cm / 36.6x33.9 inch
93x86 cm / 36.6x33.9 inch
93x86 cm / 36.6x33.9 inch
93x86 cm / 36.6x33.9 inch
Reflector Diameter
65 cm / 25.6 inch
65cm / 25.6 inch
65 cm / 25.6 inch
65cm / 25.6 inch
Antenna Weight
39 kg / 86 lbs
39 kg / 86 lbs
39 kg / 86 lbs
39 kg / 86 lbs
TX Frequency
29.0~30.0 GHz Ka-band
27.5~30.0 GHz Ka-band
29.0~30.0 GHz Ka-band
27.5~30.0 GHz Ka-band
RX Frequency
19.2~20.2 GHz Ka-band
17.7~20.2 GHz Ka-band
19.2~20.2 GHz Ka-band
17.7~20.2 GHz Ka-band
TX Gain
44.2 dBi @ 29.5 GHz (excl. radome)
44.2 dBi @ 29.0 GHz (excl. radome)
44.2 dBi @ 29.5 GHz (excl. radome)
44.2 dBi @ 29.0 GHz (excl. radome)
RX Gain
40.5 dBi @ 19.7 GHz (excl. radome)
40.2 dBi @ 19.0 GHz (excl. radome)
40.5 dBi @ 19.7 GHz (excl. radome)
40.2 dBi @ 19.0 GHz (excl. radome)
G/T
16.2 dB/K (min.)
15.5 dB/K (min.)
16.2 dB/K (min.)
15.5 dB/K (min.)
