C700

Iridium Certus C700

Stay connected with the most powerful Iridium Certus terminal available.

The Intellian C700 maritime satellite terminal connects to the Iridium Certus network of 66 Low-Earth Orbit (LEO) satellites, providing pole-to-pole communication.

The Intellian C700 uses a powerful 12 patch phased-array antenna to deliver the highest performing Certus® terminal, especially at low angles of elevation, which is critical in a maritime environment. The C700 provides IP data speeds of up to 704 Kbps, and the H2 class high power amplifier supports uplink data speeds up to 352 Kbps as standard. Users will gain both scalability and advanced performance provided by the Iridium Certus network, keeping you connected  whenever and wherever needed.

C700
Overview

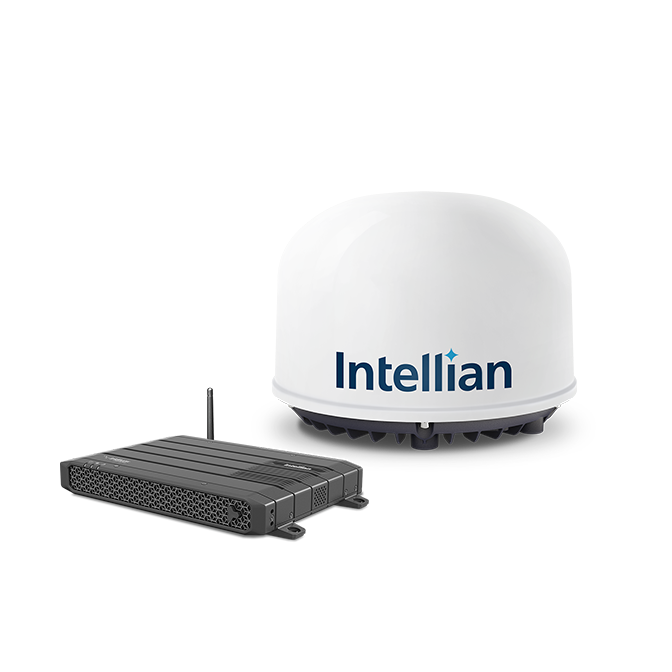

Intellian C700 Certus® Terminal

Stay connected with the most powerful Iridium Certus terminal available.

The Intellian C700 maritime satellite terminal utilizes the Iridium Certus network of 66 Low-Earth Orbit (LEO) satellites, providing pole-to-pole communication.

With its best-in-class RF performance, the C700 can deliver out-of-the-box uplink speeds of 352Kbps and downlink speeds of 704Kbps, with equally impressive low-elevation-angle RF efficiency thanks to its unique 12-patch phased array antenna design. It will support three high-quality, low-latency phone lines simultaneously; and as a solid-state antenna with no moving parts inside, the C700 is especially robust, requiring no scheduled maintenance over its lifetime.

Product Video image
Product Video

Learn More About

The Intellian C700 Certus Terminal

A quick video highlighting key system features and benefits.

Key Features

The most technically advanced Iridium Certus maritime terminal

The advanced performance of the C700 provides customers across all markets the flexibility to deploy the C700 as the primary communication antenna or as a companion to a VSAT system for seamless redundancy. The Intellian C700 is the first Iridium Certus terminal to be approved for the Japanese maritime market.

True global coverage

  • Iridium LEO network of 66 satellites
  • Pole to Pole coverage
  • Low-Earth Orbit, stronger signals
  • Low latency, high speed and always-on
  • GMDSS Ready*

Best in class performance

  • Using a 12 element patch phased-array antenna for maximum coverage
  • High power H2 antenna amplifier for 352 Kbps uplink speed
  • Excellent performance during any ship motion and low satellite elevation angles
  • VSAT companion for out of band management, supporting multiple users
  • Optimal satellite and beam handover ensuring seamless voice and data connectivity

The perfect VSAT companion

  • VSAT + C700 Bundled packages available
  • L-band element of an intelligent hybrid network
  • Data communication throughput – 352 Kbps Up, 704 Kbps Down
  • Out-Of-Band management
  • Powerful API enables full integration with 3rd party Smart Boxes
  • 19" Rack mount version available

All-in-one terminal

  • Built-in Analog Terminal Adapter (ATA) for connecting analog phones and onboard PABX
  • Built-in Power-over-Ethernet (PoE) for powering IP devices, SIP phones, wireless access points
  • Built-in private automatic branch exchange (PABX) telephone switching system
  • Built-in router supporting multiple users of the terminal
  • Built-in firewall for cyber secure connections
  • Built-in WAN for least-cost routing of data traffic via 3G/4G/5G or similar services
  • Built-in Wi-Fi
  • GMDSS Ready*

Enhanced cyber security

  • Built-In Firewall
  • HTTPS, TLS certificate
  • Data Encryption

Advanced voice solution

  • 3 HD Quality voice lines
  • Directly connect up to 4 SIP Phones
  • Up to 2 analog telephones
  • Soft PABX for up to 16 SIP Phones

*For non-SOLAS market when paired with Intellian GMDSS console. GMDSS console and SOLAS-compliant terminals are under development and will be available in the future.

Market Sectors

 Intellian C700 Maritime Users

The C700 Iridium Certus Maritime Terminal has been developed to suit all customer demands in the Maritime industry where vessel sizes and communication needs are varied.

Explore our Markets



Merchant Yachting Fishing Energy



Radome Dimension

370 x 270mm (14.5 x 11.0 inch)

Reflector Diameter

NA

Antenna Weight

7.3kg / 16 lb

TX Frequency

1616 ~ 1626 MHz

RX Frequency

1616 ~ 1626.5 MHz

TX Gain

NA

RX Gain

NA

G/T

NA
